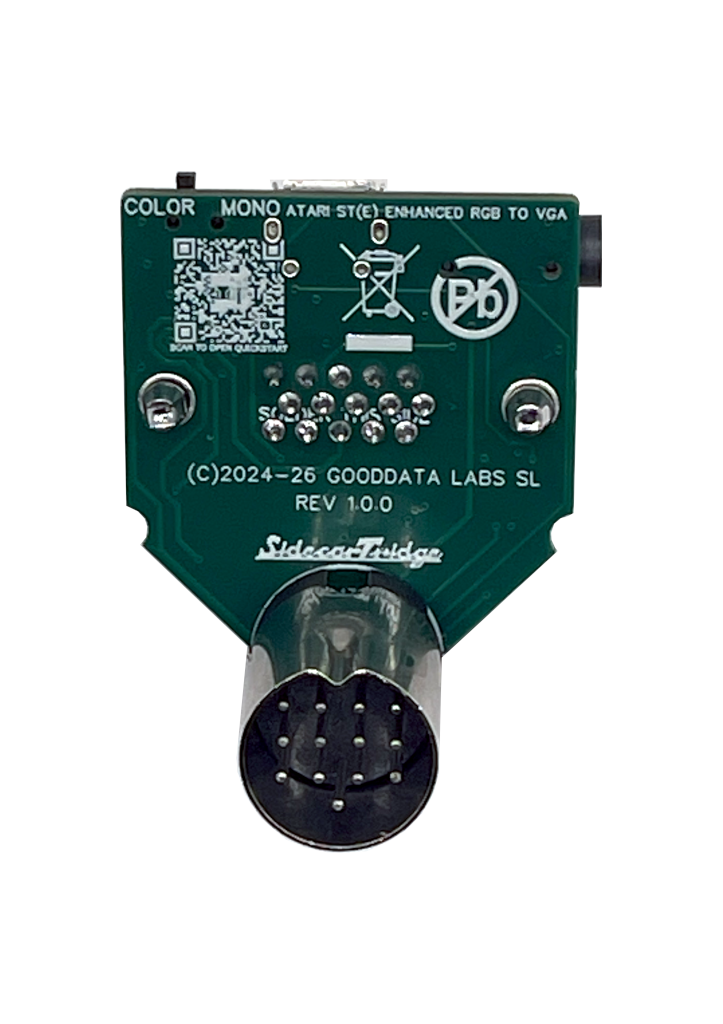

ST2VGA Enhanced – Cleaner color output for difficult Atari ST machines
The ST2VGA Enhanced is an upgraded member of the ST2VGA family designed for Atari ST computers that produce weak or noisy color video signals.
While the standard ST2VGA works perfectly with most machines, some Atari systems—especially early boards, aging hardware, or machines with marginal analog output stages—can produce RGB signals that are too weak or unstable for modern multisync VGA monitors.
The Enhanced version solves this by adding an active video conditioning stage that amplifies, filters, and buffers the analog RGB signals before they reach the display.
The result is a stronger, cleaner, and more stable image, particularly on machines that struggle with passive adapters.
What makes the Enhanced version different?
The ST2VGA Enhanced introduces an active video processing stage that improves the analog signal before it reaches the monitor.
Key improvements include:
- Active RGB signal amplification
- Analog low-pass filtering for cleaner edges
- Buffered outputs for improved signal stability
- Reduction of common Atari ST video artifacts such as vertical “jailbars”
- External regulated power supply for consistent performance
This makes the Enhanced version especially useful for Atari systems with weak or noisy video output.
Integrated video amplifier and filtering
The core improvement of the ST2VGA Enhanced is the inclusion of a dedicated video amplifier stage.
This stage is built around a quad video amplifier designed specifically for analog RGB signals, allowing the adapter to properly condition the video before sending it to the monitor.
The amplifier performs three key functions:
1. Amplify the RGB signal
Weak analog color levels are boosted to a more appropriate range so the monitor receives a strong and consistent signal.
2. Remove unwanted high-frequency noise
Vintage video outputs often contain noise outside the useful bandwidth of the picture. The integrated filtering helps reduce:
- Fine shimmer
- Edge noise
- Harsh transitions
- Color instability
3. Buffer the output
The buffered output isolates the Atari video circuitry from the VGA cable and monitor input.
This improves signal stability and helps maintain proper waveform shape, especially when using longer cables or stricter monitor inputs.
Reduces the “vertical jailbars” effect
Some Atari ST systems show a visible pattern of vertical bars repeating roughly every 16 pixels when connected to modern displays. This artifact is commonly known as “jailbars”.
The effect is caused by digital noise from the system bus coupling into the analog RGB video lines inside the computer. While this was often less noticeable on original CRT monitors, it becomes much more visible on modern LCD monitors and video capture devices.
The ST2VGA Enhanced helps reduce this artifact by:
- Buffering the RGB signals
- Filtering high-frequency interference
- Providing a properly conditioned output stage
By isolating the Atari’s video circuitry from the monitor and cleaning the signal before it reaches the VGA cable, the adapter can significantly reduce or eliminate the jailbar pattern on many machines, resulting in a much cleaner image.
External +5V power over Micro-USB
Unlike the standard ST2VGA, the ST2VGA Enhanced requires external +5V power via a Micro-USB connector.
This is necessary because the active amplifier and buffering stage require a stable power supply to operate correctly.
Using external power also provides an important advantage:
The device can be used with very early Atari ST systems that do not provide the +12V line on the monitor connector.
Reliable 5V Micro-USB power supplies are widely available, making this a simple and practical solution.
Same practical ST2VGA concept
Despite the added electronics, the ST2VGA Enhanced keeps the same practical concept:
- Direct connection to the Atari monitor port
- VGA output for compatible multisync monitors
- Support for Atari color and mono modes
- Original Atari video timings preserved
- No scan doubling or scaling
This means the classic Atari look and timing remain intact, while the analog signal path is improved.
Monitor compatibility
The ST2VGA Enhanced preserves the original Atari scan frequencies.
- Color modes (ST Low / Medium) require a VGA monitor capable of handling 15kHz HSYNC
- Mono mode (ST High) can be used with most VGA-compatible displays
This device does not perform scan conversion or scaling, so a compatible monitor is still required.
Audio output
Like the standard model, the ST2VGA Enhanced includes a 3.5 mm audio jack that routes the Atari mono audio signal to both left and right channels.
This allows easy connection to:
- Speakers
- Amplifiers
- Capture devices
- Headphones
Ideal use cases
The ST2VGA Enhanced is particularly recommended for:
- Early Atari ST computers with no +12V on the video connector
- Machines with weak or noisy color output
- Systems sensitive to VGA monitor input stages
- Users who want extra analog signal conditioning
- Restoration projects where the cleanest possible image is desired
A better option for difficult Atari systems
If your Atari already produces a strong, clean signal, the standard ST2VGA may be sufficient.
However, when the color output is weak, noisy, or inconsistent, the ST2VGA Enhanced provides a more robust solution.
By combining active amplification, noise filtering, and buffered outputs, it gives problematic machines a much better chance of producing a stable and attractive image on modern multisync VGA monitors.
Frequently Asked Questions
What is the difference between ST2VGA and ST2VGA Enhanced?
The standard ST2VGA is designed for Atari machines whose video output is already strong and stable.
The ST2VGA Enhanced adds active amplification and filtering, making it better suited for systems with weak or noisy analog video signals.
Why does the Enhanced version need external power?
The integrated video amplifier and buffering stage require a stable +5V supply, which is provided via the Micro-USB connector.
Is the ST2VGA Enhanced useful for very early Atari ST machines?
Yes. It is especially useful for older Atari ST systems that do not expose +12V on the monitor port, since the adapter provides its own external power.
Does this device upscale or scan-double the picture?
No.
The ST2VGA Enhanced preserves the original Atari timings and scan frequencies. A 15kHz-compatible VGA monitor is still required for color modes.
Is a power supply included?
The device requires an external 5V Micro-USB power source.
Use a reliable, well-regulated supply and a good-quality cable for best results.
